Patch Antenna

Patch Antenna for Radioworx V1 & GP-8900 Radios

Important Installation advice

Install vertical

Always install the antenna in a vertical position in line with cell towers transmission polarization. If an antenna is misaligned (e.g., placing a vertically polarized antenna horizontally), the receiving antenna can only capture a fraction of the transmitted signal. A 90-degree polarization mismatch can cause severe signal losses, sometimes reducing the signal strength by over 20dB (a reduction of 1/100th of the power)

Large, Loose Loops:

While coiling a coaxial cable is a common way to tidy up an installation, it can cause several technical issues for sensitive high-frequency signals like

If you cannot cut the cable,  the "Figure 8" Method: Fold the excess cable in a loose figure-eight pattern.  This cancels out the magnetic fields that create inductance.

Description:
OOTDTY

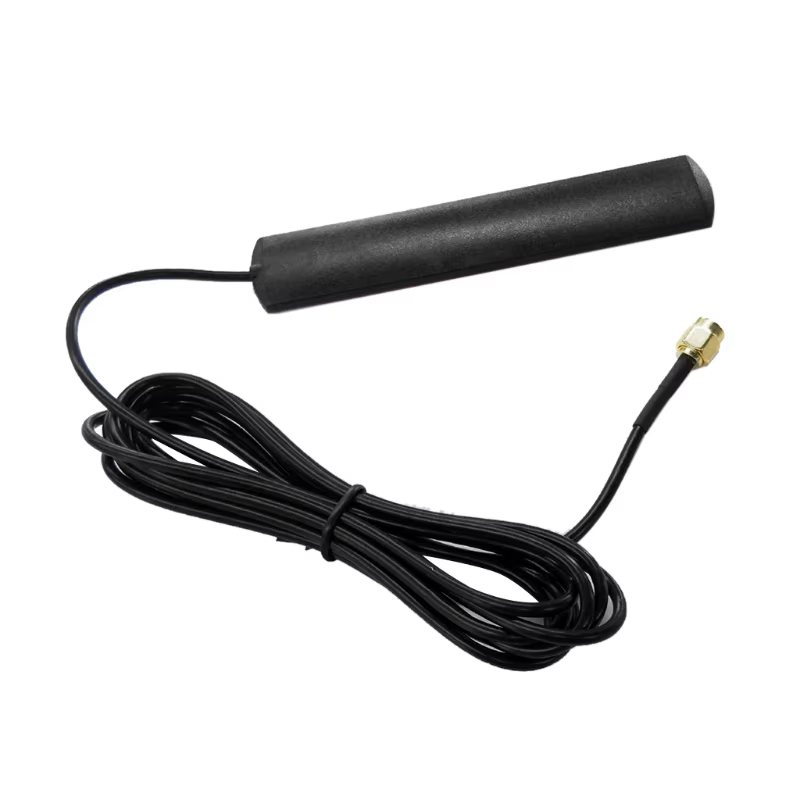

Brand new high quality Antenna- Suitable for the Radioworx V1 and GP-8900 4g Lte & Zello radios
 Please Note: These are antennae, not signal boosters.

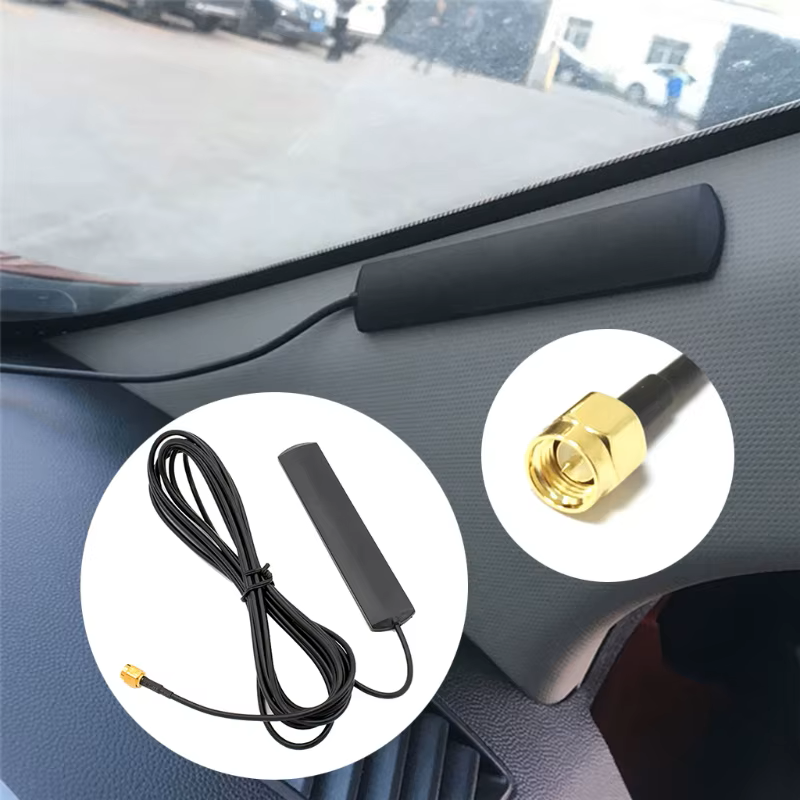

Application: car, truck, boat, campers, Buses, mobile radio, etc.

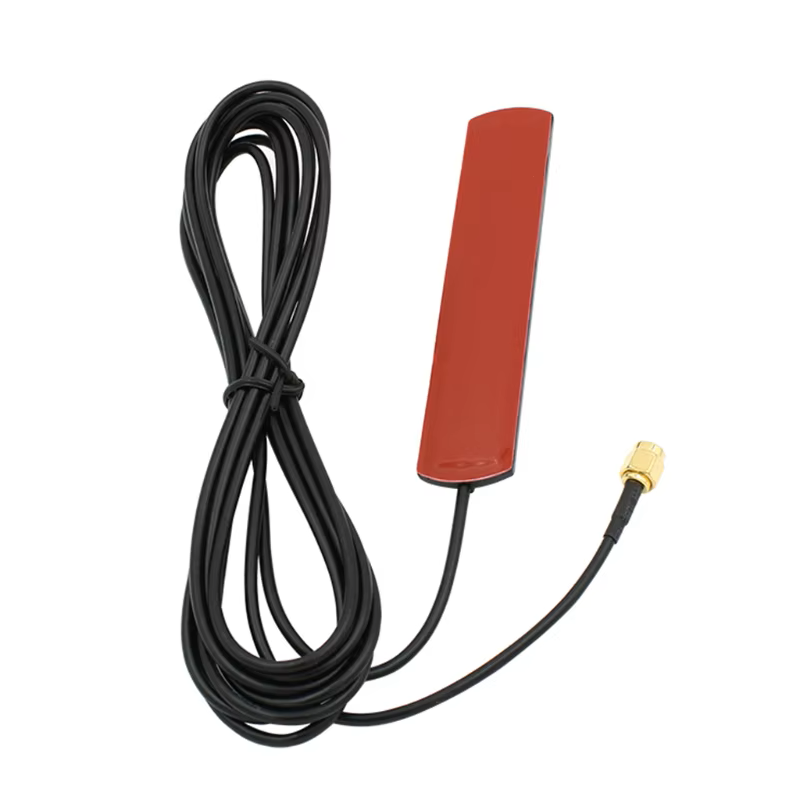

This antenna is suitable for mounting on smooth metal, glass, plastic, stone or even wood surfaces.
Frequency range: 700-2600MHz;

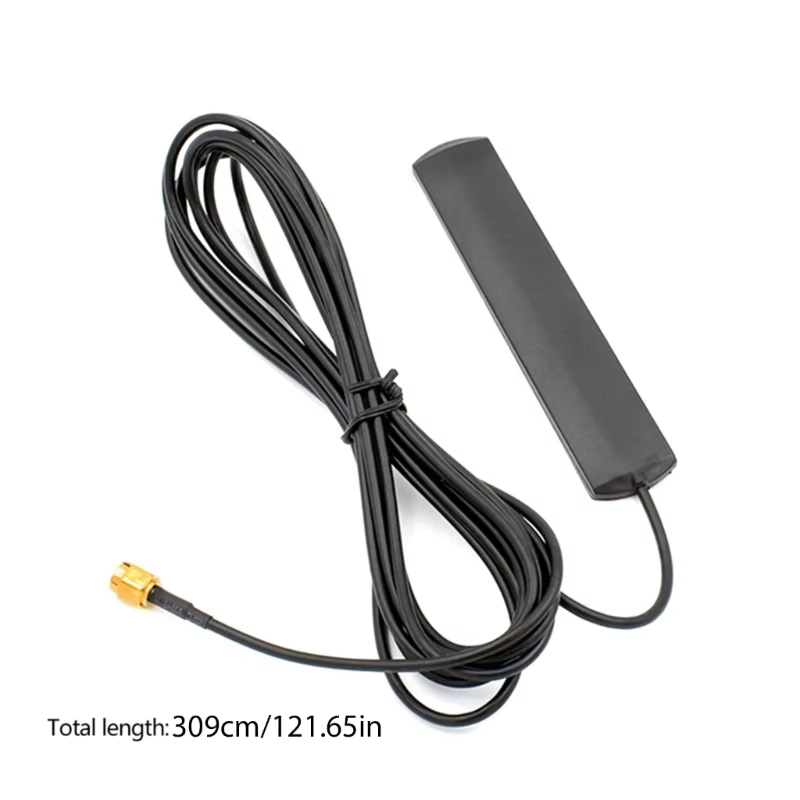

Cable length: 10ft; 3dBi;

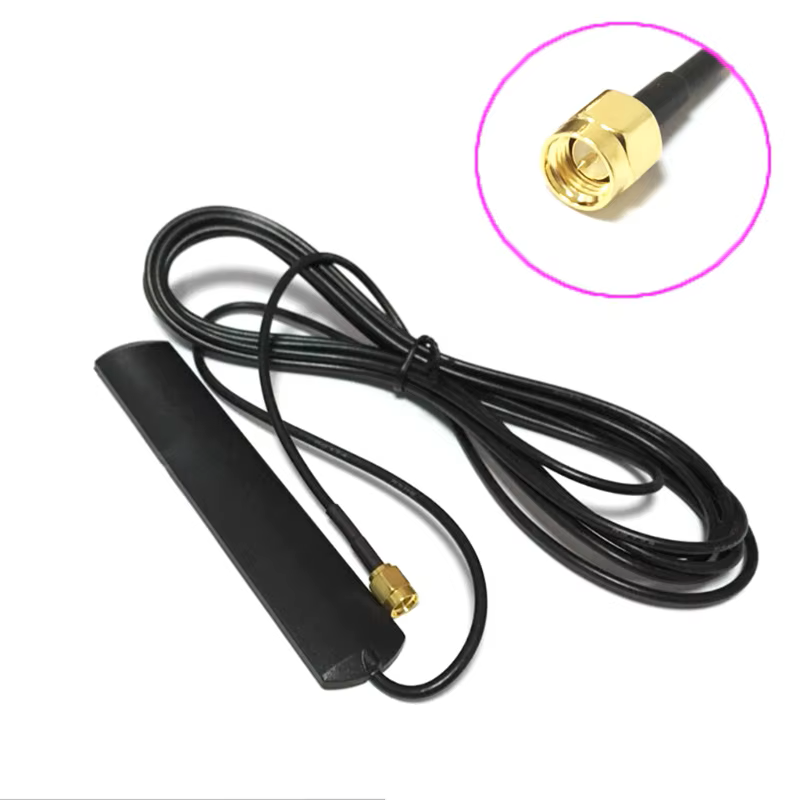

Connector: SMA male

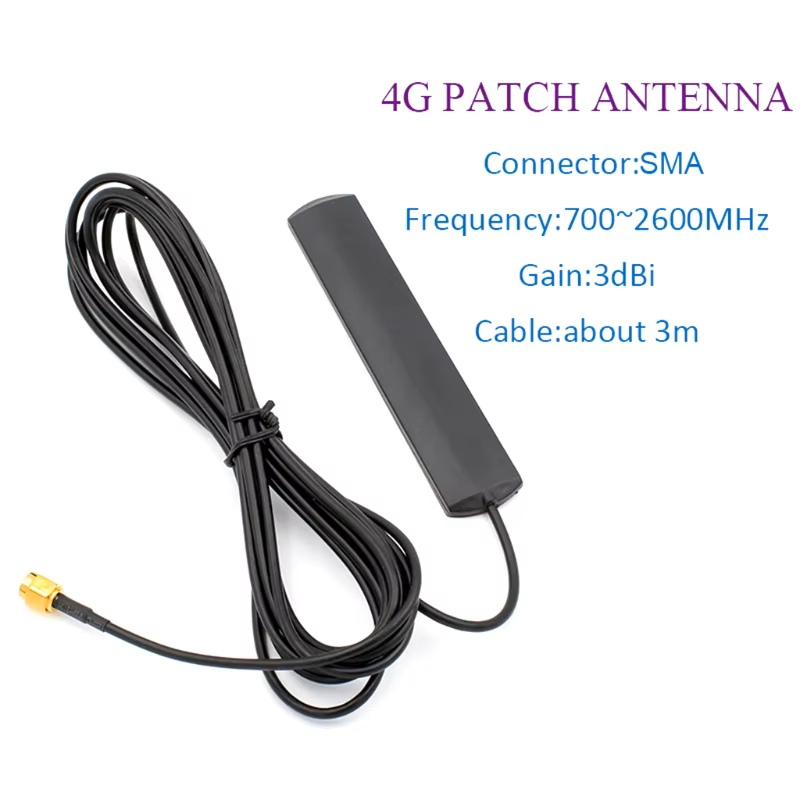

Specification:
Connector: SMA
Frequency: 700-2600MHz

Material: ABS
Color: Black
Length: app 3m
Quantity: 1 pc
